This Kit Services 1 Axle - Order 1 Kit for each Axle you are Lifting.

BEFORE ORDERING, CONFIRM YOUR SPRINGS ARE ON TOP OF THE AXLE!

If they are located under the spring please look at purchasing a over/under conversion kit instead which can be found here: Over/Under Conversion Kit.

Fits: 1 3/4" wide leaf spring

 Features:

• Our custom made lift blocks designed to lift and support as much weight as you can load on them

• Our brand new extra heavy duty U-bolt plates

• Heaviest Ubolts Designed for Your Trailer

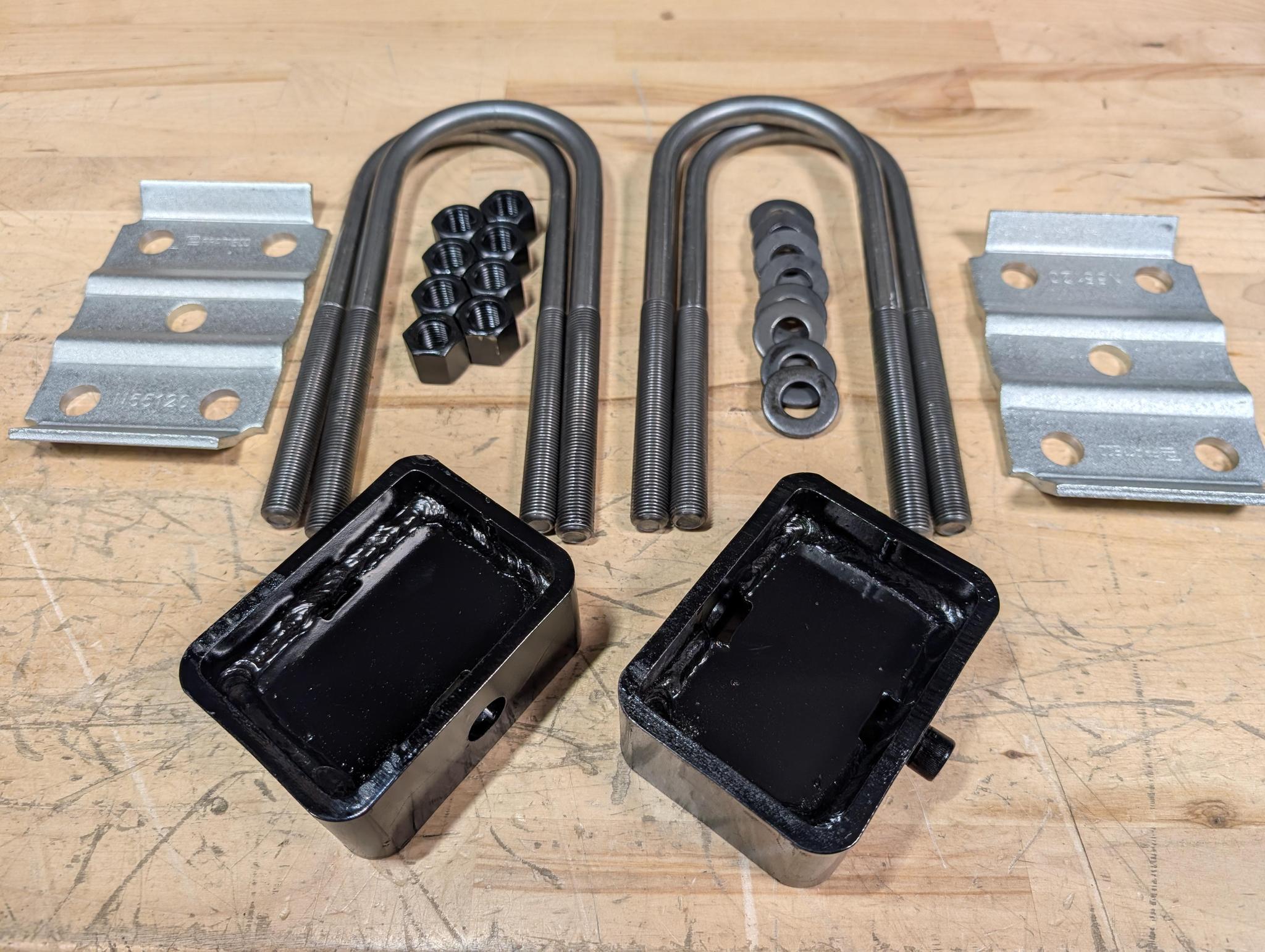

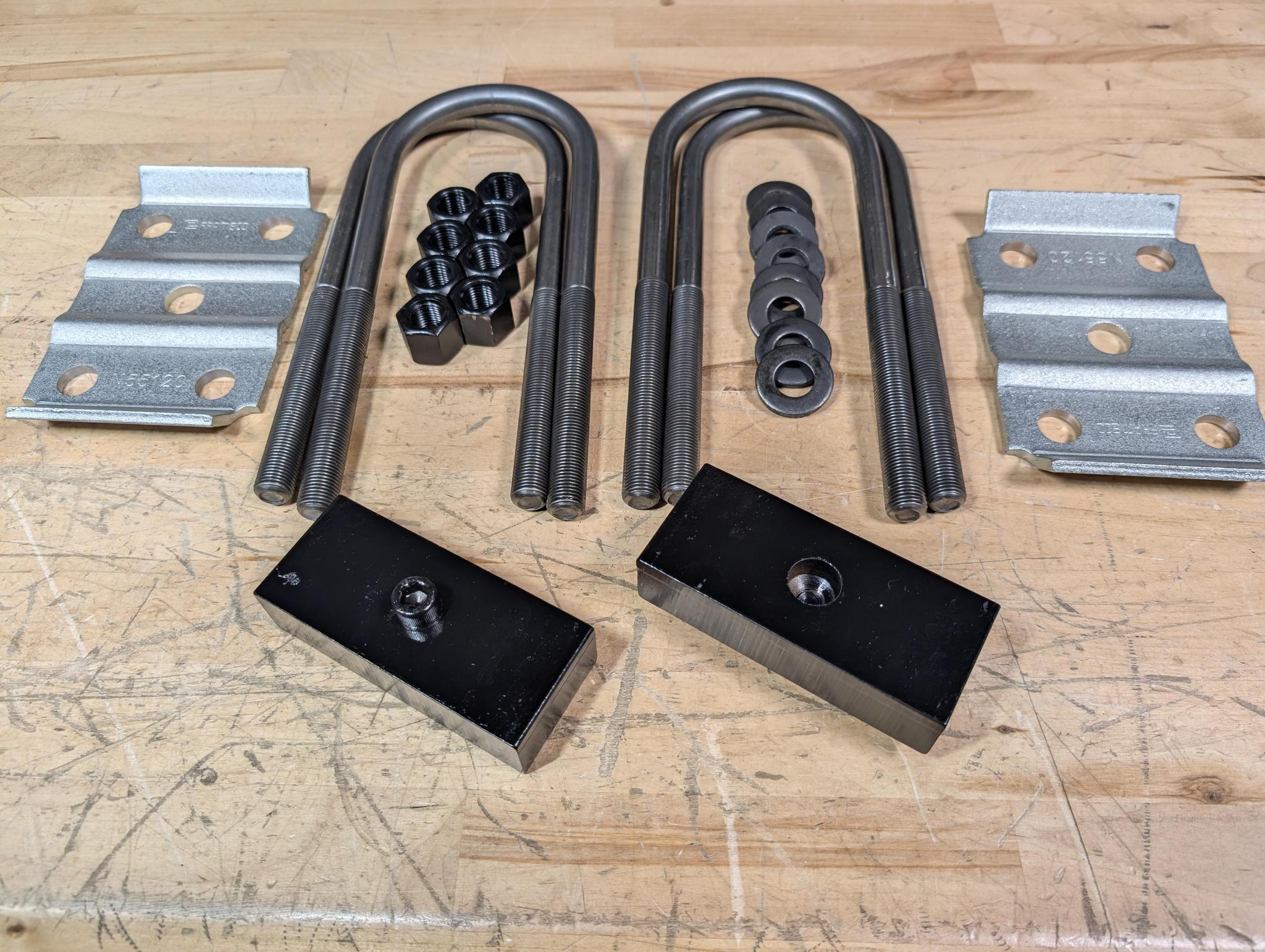

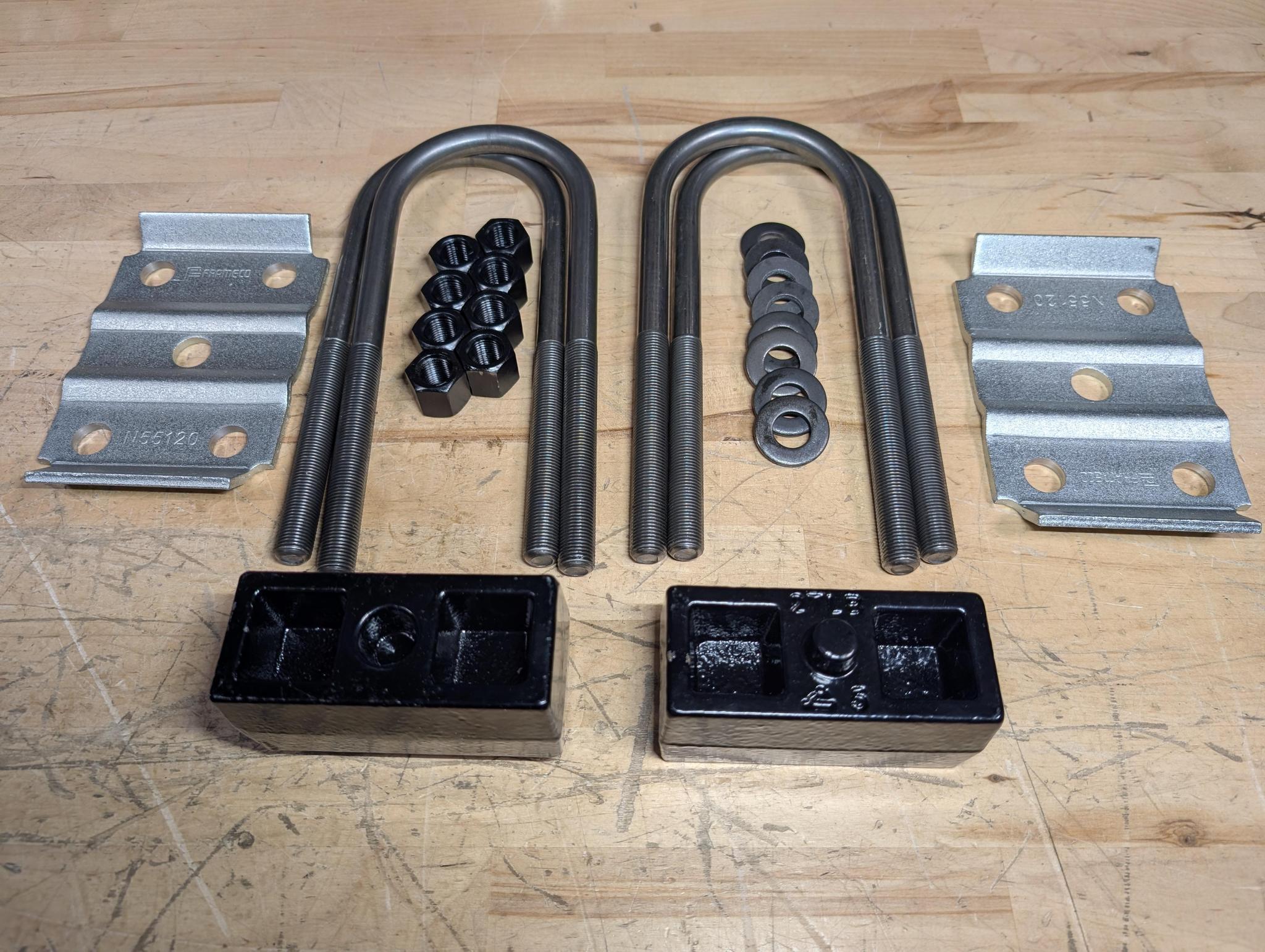

Each kit designed to service 1 axle contains:

• 2 Lift blocks that are 1 3/4" wide, 4" long, and either 1", 2", or 3" tall.

• 4 Custom bent U-bolts With Nuts/Washers to accommodate 3, 4, 5 and 6 leaf springs at the new height with the blocks

• If you have a 7 or 8 leaf spring we can make a custom longer Ubolt set, however the order will have to be processed Manually so give us a call 519-428-9977 ext 1

• 2 Heavy Duty U-bolt plates

FAQ

• Do you have these in stock?

  • yes, we stock many kits all the time and we ship every day worldwide.

• Can you lift your trailer 3" will that damage the suspension?

  • You Can lift your trailer 3", however we do recommend installing a cross member on the back hangers to prevent side to side twisting of the rear hangers, this can lead to cracks in the welds that hold the hangers to the frame. (cross member linked here)

• How High do I need to lift my Trailer?

  • Hook up your trailer and set your towing height or 5th wheel pin height that you wish to tow your trailer at.

  • Park your truck and trailer on flat ground to measure

  • Measure the front of you trailer and the back of your trailer at the straightest most even and level part you can find. (frame, trim, seam)

  • If you are out 6" then you need a 3" block

  • If you are out 4" then you need a 2" block

  • if you are out 2" then you need a 1" block

  • Whatever measurement you raise the suspension it will (almost) double at the rear bumper

• What are the Torque Specs on the Ubolts?

  • 1/2" Ubolt - 70-80Ftlbs

  • 9/16" Ubolt - 80-95Ftlbs
